IRO XD X4

Meet our Generation 4, the new XD X4.

IRO XDX4 base1 gmsk

Adapted to the well-proven design of the X4 generation, the XD X4 has been created to meet requirements for the countless variations in yarn fibers that continue to arise.

With decades of experience in yarn feeding, resulted in continuation of the XD series of weft feeders, this to prepare for upcoming challenges that lays ahead of our customers.

Perfect accessories

STANDARD

TED Tension Display

The TED function is an integrated display where you can set desired tension value for the fabric production. Easily viewed on the display, and includes also alarms for ­example weft yarn break.

IRO TED X4
OPTIONAL

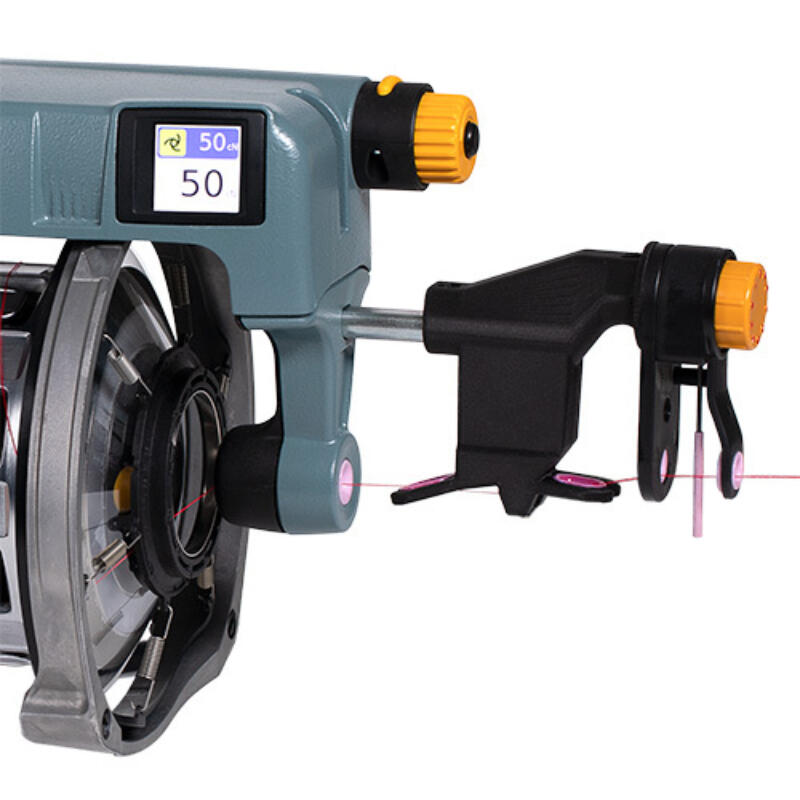

ATC-W Active Tension Control

The integrated display is also compatible with our ATC which will maintain ­tension through the full weaving cycle.­ ­Well-proven design combined with modular build-up of the weft feeder.

ATC-W for X4
IRO ATC W X4
OPTIONAL

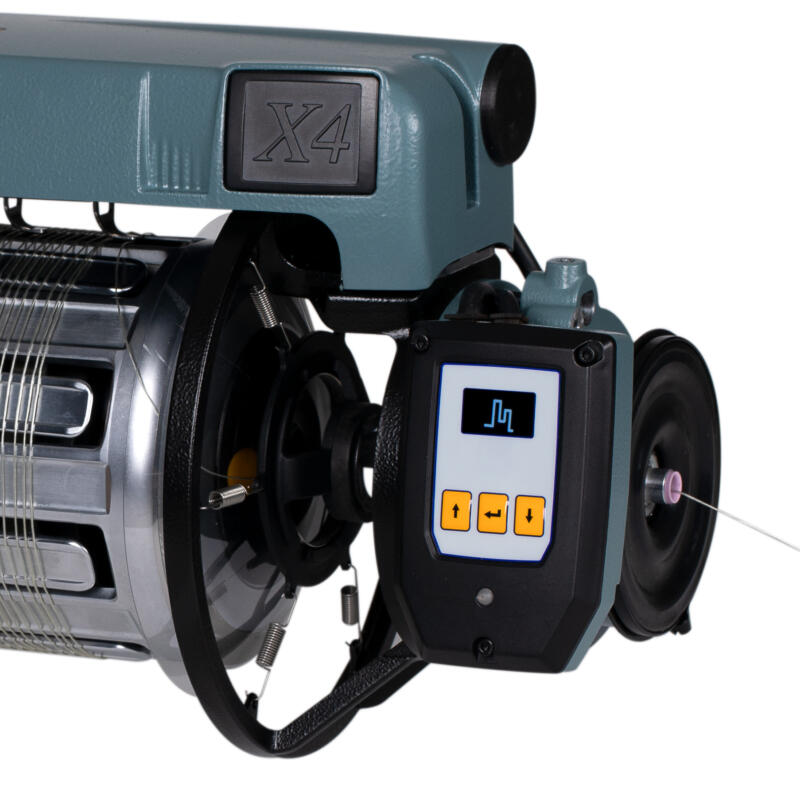

RTC Rapid Tension Control

A fast reacting, programmable weft ­tensioner system. It allows adjusting ”within-the-pick” to different tension levels, achieving the optimal tension required for the complete weft insertion cycle.

RTC
IRO RTC X4
IRO XDX4 base2 gmsk
S/Z Switch
Pneumatic treading
Permanent magnet motor
Sensor system
Separation setting
Spool body
Easy balloon adjustment

The components

  • S/Z Switch

    Used to set the directions of rotation, or to activate the standby mode.

  • Pneumatic treading

    "Easy access" push-button system for fast "one-step treading" (through the entire feeder), or "half-treading" (from the input eyelet to the spool body).

  • Permanent magnet motor

    A powerful maintenance-free “permanent magnet motor” ensures low energy consumption, low operating temperature and high torque at all speeds.

  • Sensor system

    Mechanical or optical sensor systems (including an integrated yarn break sensor), ensures precise yarn reserve control.

  • Separation setting

    Stepless yarn separation adjustment - without the need for any tools.

  • Spool body

    The specially designed high quality surface treated spool body gently handles a wide range of yarns and offers the lowest yarn take-off tension and minimized dust collection.

  • Easy balloon adjustment

    Adjustable knob for easy and precise brushring adjustment - even when the feeder is running.

Technical data
XD X4
Maximum speed 2000 m/min
Yarn count range 120 - 0.5 Nm and 22 - 10000 dTex
Winding directionS” and ”Z”
Yarn separation6 mm
Sensor systems Optical or Mechanical
Spoolbody diameter135 mm
Dimensions220 mm height, 420 mm length, 190 mm width
Weight8.6 kg
